No DIAdem
Inspect TDMS files without requiring a DIAdem environment.
TdmsSlice
Inspect TDMS. Select the range you need. Export to CSV.
Open TDMS files, inspect Channels and metadata, preview supported data, select the required range, and export it to CSV with companion metadata.
Windows 11 x64 · Portable ZIP · Local processing · No separate Python installation required
When is TdmsSlice useful?
TdmsSlice is designed for practical TDMS inspection and data export tasks rather than broad, all-purpose measurement analysis.
Large TDMS
Export only the Channel range you actually need.
Before Python
Check Channels and metadata before writing analysis code.
One Channel
Focus on a specific Channel instead of the whole file.
Preserve Index
Keep the original Channel sample index in CSV output.
Keep Metadata
Store useful source context alongside exported data.
From TDMS to the data you actually need
1OpenTDMS file
→ 2InspectGroups & Channels
→ 3PreviewChannel data
→ 4SelectStart Index & Count
→ 5Export CSV+ metadata JSON
TdmsSlice exports selected data from a TDMS Channel to CSV. It does not create a smaller TDMS file.

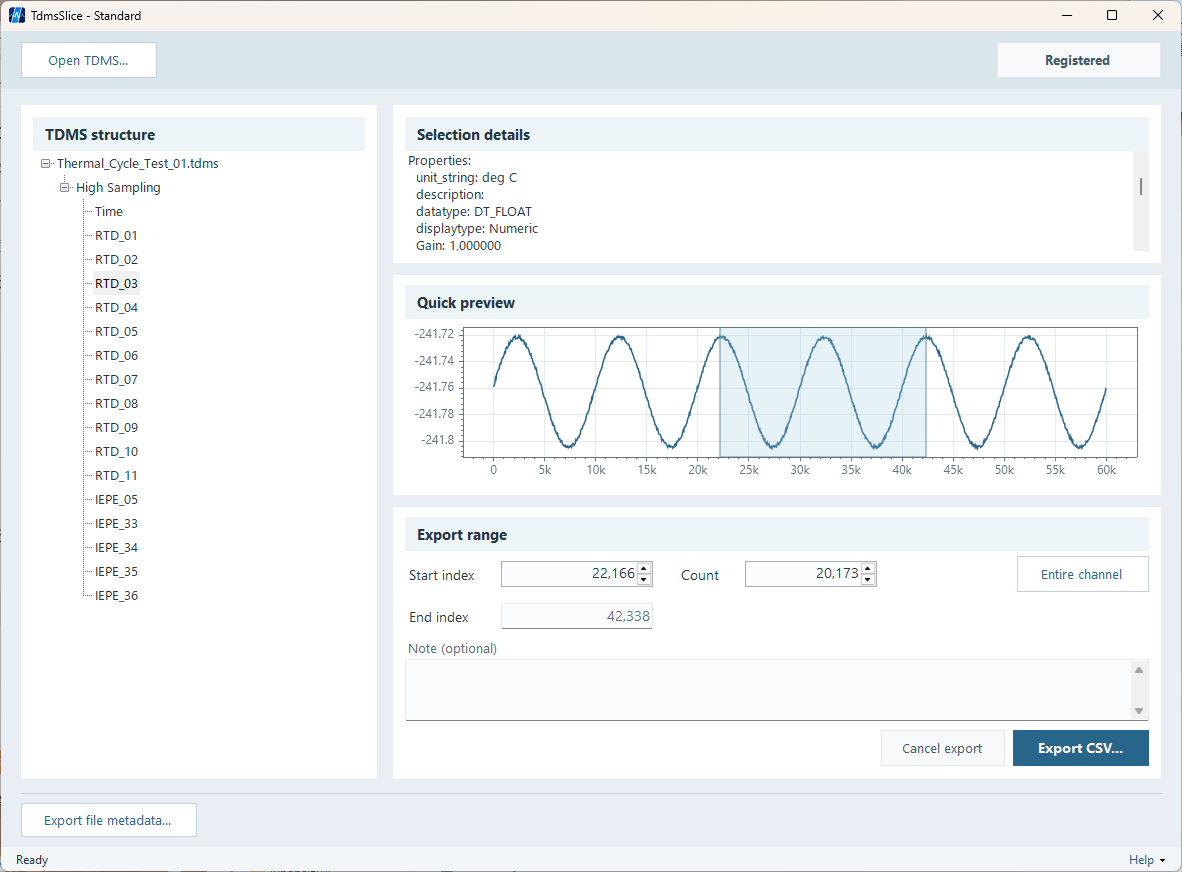

A focused workflow for TDMS inspection and export
TDMS Structure
Inspect Groups, Channels, data types, sample counts, and properties.
Quick Preview
Check the overall shape of supported Channel data before export.
Range Selection
Specify the required data using Start Index and Count.
CSV Export
Export the selected Channel range while preserving its sample index.
Time-aware Export
Include a usable time axis when waveform timing information is available.
Metadata JSON
Save source and selection information alongside the CSV.
Broad TDMS data type support
TDMS files can contain more than ordinary floating-point waveform data. TdmsSlice supports a broad range of data types for Quick Preview and/or CSV export.
Preview availability varies by data type.
View Supported Formats →More than just a CSV conversion
CSV is convenient, but conversion can remove important context. TdmsSlice creates a companion metadata JSON file for each CSV export.
It can record the source file, Group and Channel, selected range, data type, sample count, and TDMS properties.
source.tdms
↓
selected_data.csvIndex · Time · Value
+
selected_data.metadata.jsonSource · Channel · Range · Properties
Try TdmsSlice with your own TDMS files
Evaluation uses the same core TDMS reading, supported data types, Quick Preview, metadata features, and safety behavior as Standard.
CSV export in Evaluation is limited to 100 samples per export.
Download EvaluationEvaluation or Standard?
| Feature | Evaluation | Standard |
|---|---|---|
| TDMS reading | Same core support | Same core support |
| Metadata inspection | Yes | Yes |
| Quick Preview | Yes | Yes |
| Range selection | Yes | Yes |
| CSV export | Up to 100 samples / export | No Evaluation sample limit |
| Metadata JSON | Yes | Yes |
| Normal use | Offline | Offline |
| Price | Free | To be announced |
Common TDMS questions
Can I open a TDMS file without DIAdem?
Yes. TdmsSlice is designed to inspect TDMS structure, Channels, metadata, and supported Channel data without requiring DIAdem.
Can I export only part of a TDMS Channel to CSV?
Yes. Select the Channel, specify Start Index and Count, and export only that selected range.
Does TdmsSlice create a smaller TDMS file?
No. TdmsSlice does not create or rewrite TDMS files. It exports selected Channel data to CSV with companion metadata JSON.
Do I need Python installed?
No. The required Python runtime and TDMS-reading components are included with TdmsSlice.
Can TdmsSlice handle Complex, Timestamp, or DAQmx Raw data?
These formats are supported for CSV export and/or Quick Preview. Availability differs by data type.
Try TdmsSlice with your own TDMS file
Inspect the file, preview its Channels, and export a small sample before deciding whether Standard fits your workflow.
Download TdmsSlice EvaluationWindows 11 x64 · Portable ZIP · Local processing · No separate Python installation required
